This Fourth Vision series NVR is a high performance network video recorder, combined with H.264 video compression, high-capacity hard disk storage, TCP/IP transmission, embedded Linux operating system and a variety of other advanced technologies in the electronic information industry, all those ensure that a high-quality, low bit rate video storage characteristics, and good system stability.

Features:

Built-in Wireless Wifi Module.

Built-in  wireless Wifi module that is specially designed for security system delivers stable signals and strong anti-interference capability.

No Wifi Pairing Required.

Plug and Play surveillance kit, camera and NVR are paired before shipping. Simply connect the cameras and NVR to the Power by included power adapter, picture shows up.

Wide Compatibility.

Compatible for various conditions and situations.

P2P. Connect quickly by remote control, and ensure smooth and stable images.

Alarm Trigger. Support various types of alarm triggers, such as video loss, motion detection, etc., and alarm output via sound/E-mail/FTP, etc.

Remote Control & Access

Supports Android/ mobile phone or tablet remote control  (LAN and Internet) access and control.

Notice.

Wireless means video cable or Cat5 ethernet line not required for camera's signal transmit to work, but cameras still NEED to connect to Power for power supply and 24/7 surveillance purpose. Please Note that this is not Battery Powered Cameras. Wireless Camera System Doesn't Mean You can Use it without Any Cables. Power Supply still Needed to Power on the Cameras and NVR. Powered by Stable Power from nearby Outlets, 24x7 hours Live Surveillance.

Specification:

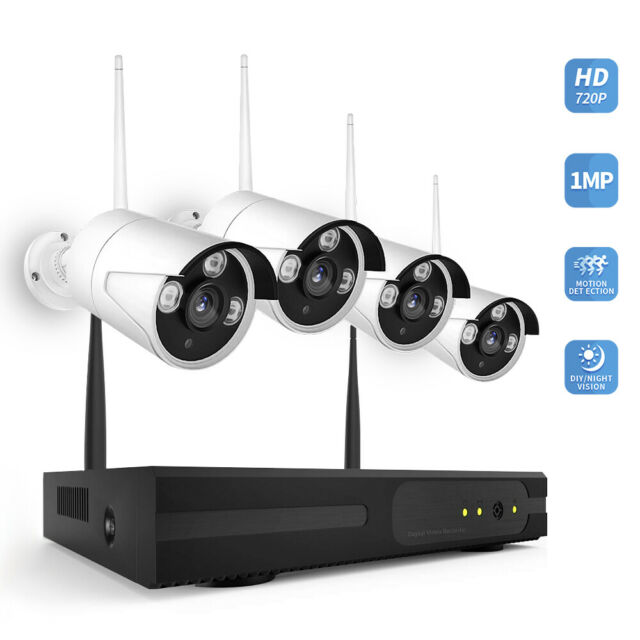

Item: NVR Kit

Model: K9604 720P

NVR

OS: Linux

Video Input: 4 Channel
Output: 1CH, 1920x1080P
VGA Output: 1CH, 1920x1080P

Video/Screenshot: Manual/Timing/Motion Detection/Alarm

Playback: Instant Replay/Normal/Event Review

HDD: 1 * SATA Port, supports up to 4TB Hard Disk

Interface: 1 * RJ45 10/100M ethernet port

                1 * USB2.0

                1 * 3.5inch audio jack

Network protocol: UPnP (Plug and Play), SMTP (Email), PPPoE (dial-up access), DHCP (Automatically obtain an IP address), etc.

Power Supply: DC 12V 2A

Power Consumption: ≤5W

Working Temperature: -10℃-＋55℃

Working Humidity: 10％--90％

Size: 258 * 210 * 42mm / 10.2 * 8.3 * 1.7inch

Weight: ≤1Kg/ 35.3oz (Not Include Hard Disk)

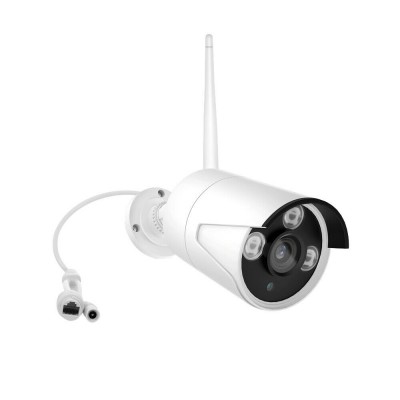

Wireless IPC

Camera Pixel: 1MP 720P

Sensor: 1/4” Progressive Scan Sensor

S/N Ratio: > 39.1dB

Minimum Illumination: 0.1Lux (Color), 0.01Lux (B/W)

Lens: 4/6mm

OSD: Date Time & Title

Day & Night: Auto / Color / BW

3D-DNR: Auto

Mirror/Flip: On/Off

Masking: 4 Zone Selectable

Code Stream: 1280x720@15fps，640x480@15fps (Dual)

Protection Class: Standard IEC61000-4-5

Power Input: DC 12V-1A

Power Consumption: ≤6W

Interface: RJ45 / WIFI 802.11b/g/n

Working Temperature/Humidity: -10℃ to +50℃ / 30% to 80% RH

Storage Temperature/Humidity: -20℃ to +60℃ / 20% to 90% RH

Camera Size: 180 * 66mm / 7.1 * 2.6inch

Package Size: 32 * 26.8 * 17.8cm /12.6 * 10.55 * 7.01in(L * W * H)

Package Weight: 3328g /117.39oz

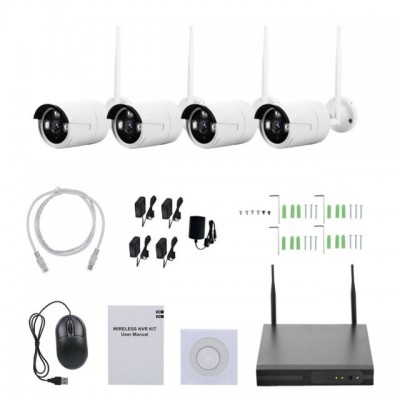

Package Include:

1 * NVR

4 * Cameras

1 *

1 * Ethernet Cable

1 * Mouse

5 * Power Adapter

4 * Antenna

1 * Set of Mounting Screws

1 * User Manual (English)

Note:

Hard Drive Disk Is NOT included
